Signature Inversion

This notebook follows Section 3.6 of Deep Signature Transforms. PyTorch code can be found at this

import equinox as eqx
import jax
import jax.numpy as jnp
import jax.random as jrandom
import matplotlib.pyplot as plt
import numpy as np
import optax
from signax import signature

jax.config.update("jax_platform_name", "cpu")

seed = 1234
key = jrandom.PRNGKey(seed)
signature_depth = 12
learning_rate = 2 * 1e-3
num_training_iters = 5000

Preprocessing data

Here we consider number 0

# number zero (PenDigit)
path = [29, 97, 0, 57, 22, 10, 68, 0, 100, 40, 83, 90, 37, 100, 12, 57]
path = np.array(path, dtype=float).reshape(-1, 2)
# rescale into range (-1,1)
path = -1.0 + 2 * (path - np.min(path)) / (np.max(path) - np.min(path))
path = jnp.array(path)

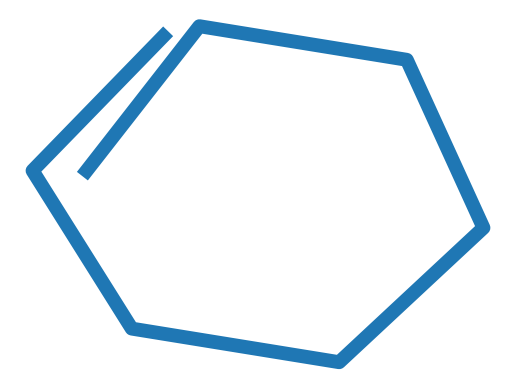

Let’s visualize the data

plt.plot(*path.T, label="Original path", linewidth=10, linestyle="-")
plt.axis("off")

(np.float64(-1.1), np.float64(1.1), np.float64(-1.1), np.float64(1.1))

Compute signature of the given data

sig = signature(path, depth=signature_depth)

Model

This model is quite simple: set of parameters (in eqx.nn.Linear) represents the path.

The model outputs the signature of the learnable parameters.

class InvertSignature(eqx.Module):
    path_length: int
    signature_depth: int

    # path represented as weight of linear layer
    # can instead use `jnp.ndarray`
    path: eqx.nn.Linear

    def __init__(self, path_length, signature_depth, *, key) -> None:
        self.path_length = path_length
        self.signature_depth = signature_depth

        self.path = eqx.nn.Linear(
            in_features=1,
            out_features=2 * path_length,
            use_bias=False,
            key=key,
        )

    def generate_path(self, x):
        x = self.path(x)
        return jnp.reshape(x, (self.path_length, 2))

    def __call__(self, x):
        x = self.generate_path(x)
        return signature(path=x, depth=signature_depth)

Model instantiation

model = InvertSignature(
    path_length=path.shape[0], signature_depth=signature_depth, key=key
)

Create optimizer

optim = optax.adam(learning_rate=learning_rate)
opt_state = optim.init(eqx.filter(model, eqx.is_array))

A normalization term to compute the loss. The idea here is to penalize more higher order of signatures

normalization = [
    np.floor(np.log(i + 1) / np.log(2))
    for i in range(1, 2 ** (signature_depth + 1) - 1)
]
normalization = jnp.array(normalization)

In fact, the input of the model is fixed

x = jnp.ones((1, 1))
y = sig

Compute loss in Equinox style

@eqx.filter_value_and_grad
def compute_loss(model):
    pred_sig = model(x)
    diff = y - pred_sig
    diff = diff * normalization
    return jnp.log(jnp.mean(diff**2))


@eqx.filter_jit
def make_step(model, opt_state):
    loss, grads = compute_loss(model)
    updates, opt_state = optim.update(grads, opt_state)
    model = eqx.apply_updates(model, updates)
    return loss, model, opt_state

Training step

for i in range(num_training_iters):
    loss, model, opt_state = make_step(model, opt_state)
    loss = loss.item()
    if i % 500 == 0:
        print(f"Iter={i} \t loss={loss:.4f}")

Iter=0 	 loss=2.1277
Iter=500 	 loss=-1.0401
Iter=1000 	 loss=-4.3011
Iter=1500 	 loss=-5.2455
Iter=2000 	 loss=-5.6451
Iter=2500 	 loss=-5.8675
Iter=3000 	 loss=-6.0165
Iter=3500 	 loss=-6.1480
Iter=4000 	 loss=-6.2733
Iter=4500 	 loss=-6.4074

Helper function to refine path

The following two functions taken from this file

def _get_tree_reduced_steps(X, order=4, steps=4, tol=0.1):
    if len(X) < steps:
        return X

    dim = X.shape[1]

    # slide over a window size = `steps``
    for i in range(steps - 1, len(X)):
        # no redudancy in path -> compute its signature
        new_path = X[i - steps + 1 : i + 1]  # noqa: E203
        new_path_sig = signature(new_path, order)

        # reduce the path with the first and the last
        new_path2 = jnp.r_[
            X[i - steps + 1].reshape(-1, dim),
            X[i].reshape(-1, dim),
        ]
        new_path2_sig = signature(new_path2, order)

        # compute the difference between two signatures
        norm = jnp.linalg.norm(new_path_sig - new_path2_sig)
        if norm < tol:
            # if it is reducible, the perform the same procedure on the
            # next sub path
            return _get_tree_reduced_steps(np.r_[X[: i - steps + 2], X[i:]])

    return X


def get_tree_reduced(X, order=4, tol=0.1):
    """Removes tree-like pieces of the path."""
    X = jnp.r_[X, [X[-1]]]

    for step in range(3, len(X) + 1):
        X = _get_tree_reduced_steps(X, order, step, tol)

    if (X[-1] == X[-2]).all():
        return X[:-1]

    return X

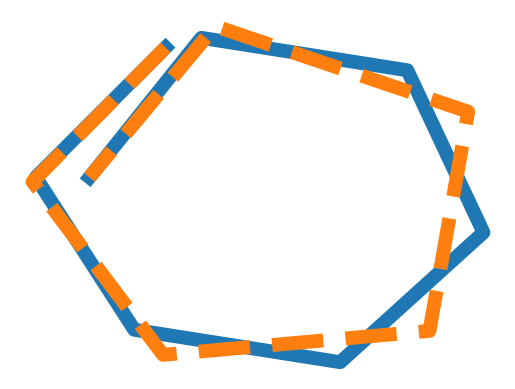

Plot result

generated_path = model.generate_path(x)
generated_path += path[0] - generated_path[0]
generated_path = get_tree_reduced(generated_path, tol=1e-2)

plt.plot(
    *path.T,
    label="Original path",
    linewidth=10,
    linestyle="-",
)
plt.plot(
    *generated_path.T,
    label="Generated path",
    linewidth=10,
    linestyle="--",
)
plt.axis("off")

(np.float64(-1.1151580572128297),
 np.float64(1.10072181224823),
 np.float64(-1.1035885572433473),
 np.float64(1.1753597021102906))
